John's Night Heron

Page 5:  The Finished Boat

Click any photo to view a larger image.


The Finished Boat
Fully rigged, the boat weighs 39.5 pounds.  I am pleased with the weight, considering it has 6 ounce fiberglass, inside and out, with two layers on the outside hull.  It's built like a tank!


Rear view.  The back deck is low and flat, but I can't quite reach the back deck with my head when leaning back.

Lewisville_12-2003_3.jpg (185667 bytes) I took the boat on a short shakedown cruise before gluing the seat into position and fine tuning the shape of the kneepad foam.


The shear line is so pretty that sometimes I regret not highlighting it with a contrasting color.


The Night Heron performs pretty much as I expected.  A very stable feel.  Not as maneuverable as my Guillemot.  The bow rises over waves that the Guillemot tends to cut into.


My friend Barbara tries out the boat in the next few shots.

I just love the low profile of the Night Heron!

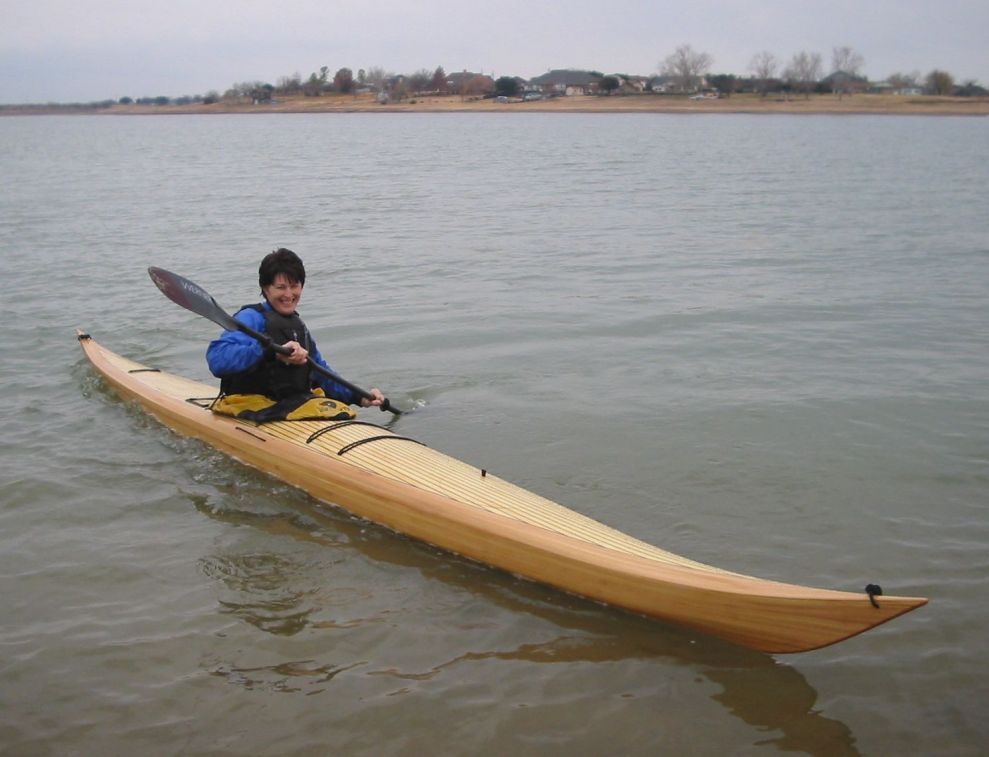

Barb_Lewisville_12-2003_1.jpg (158036 bytes) I'm waiting for warmer water to test rolling the boat, but I'm sure it will be an easy roller. Barb_Lewisville_12-2003_3.jpg (137123 bytes)


The boat's first real outing was at Caddo Lake over the new year weekend.  Seventeen miles on Friday and eight miles on Saturday.  The boat was very comfortable.


There is enough room in the hatches for a few days camping gear with proper planning, though my outings were day trips.


Just a few more shots of the boat in the water, here at Lake Ray Roberts.

 In a crosswind, there is no significant weathercocking, but  boat does seems to slide a lot with only my 155 lb weight and day gear.  Maybe I just noticed it more because of all the trees in the water to use as reference points.

The Night Heron is a relatively loose- tracking boat for its 18 foot length.


The boat feels very stable, and easy to paddle at a race pace.  At sprint speed the bow lifts up a lot, though, presumably due to the the flatness of the bottom that is brought relatively far forward.


Steve tries out the Night Heron.


I am looking forward to a lot of fun in this boat.  Now, what to build next?!?

After paddling my Night Heron a few months, I decided to tighten the tracking a little by adding a little more fixed skeg to the external stem at the stern.  It didn't take much to greatly improve the tracking.  Here are a few photos:


Mahogany strips were built up to the height of a string line.  The rear third of the boat bottom became a straight line to the stern.


Two layers of 6 ounce glass on top.  The depth of the keel ranges from nothing three feet from the stern to about 3/4" at the stern.


Varnished at it's finished.   It is a very modest keel, and does not significantly affect the appearance of the boat.  It doesn't take much keel to make a big difference in performance.


I really like the improved tracking.  It's still more maneuverable than most 18 foot boats, but not so extreme anymore.  After two days on the water in varying conditions, I am quite pleased.

This completes my Night Heron project.  I want to thank everyone who has shared ideas and experiences on the boat-building message boards, as I learned a lot.

Thanks also to my local paddling friends who provided encouragement to build, as well being great paddling buddies.

See you on the water!

Sincerely, John Caldeira      john@outdoorplace.org
